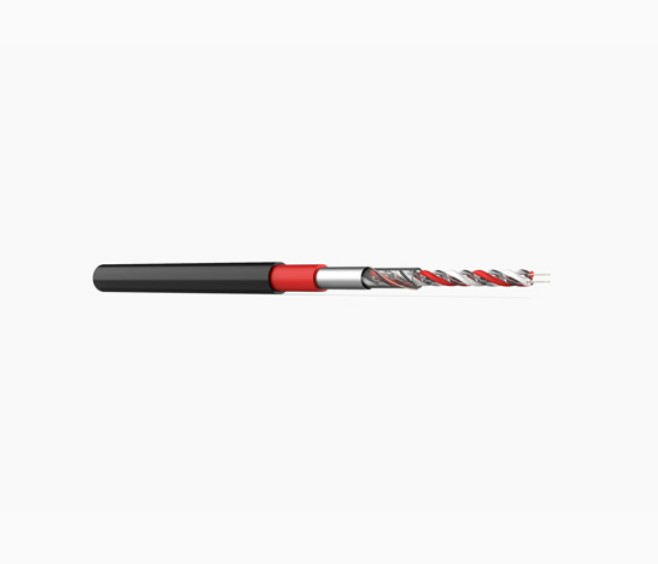

สายตรวจจับความร้อนแบบอนาล็อกสายเคเบิลเคลือบไนลอน FyreLine Analogue Nylon LHD Cable

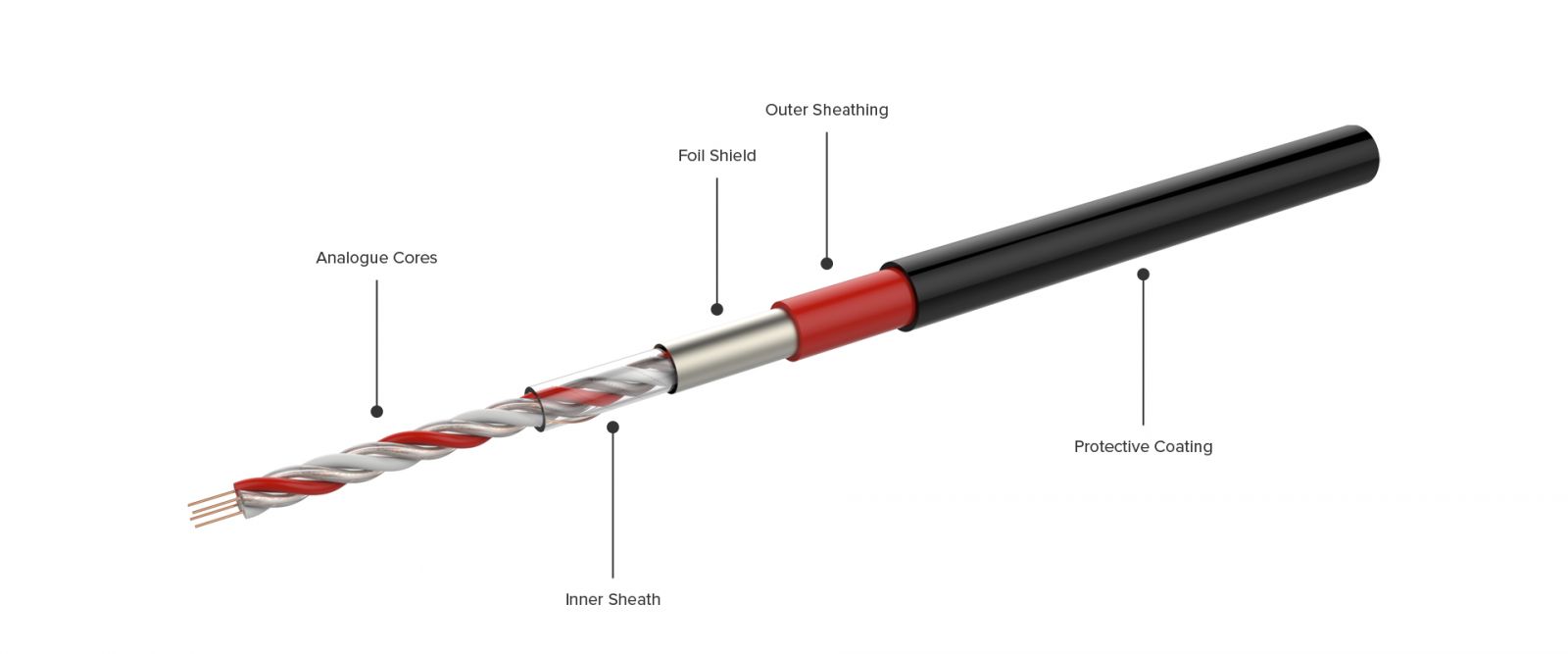

Outer Jacket Black Nylon
Overall Diameter 5.50mm ± 0.075mm (0.217” ± 0.003”)
Humidity 0% to 99% RH
RFI Shielding Twisted and foil shielding to reduce inductance and RF susceptibility
Cores Calibration Resistance: White
Sensor Core: Red
Conductor & Specially Doped Polymer Core: Clear
Conductor & Specially Doped Polymer Core: Clear
Maximum Continuous Length 500m (1640ft)
Minimum Continuous Length 30.5m (100ft)
Operating Temperature Range -40ºC to 125ºC
Continuous Ambient Temperature Range -40ºC to 90ºC
