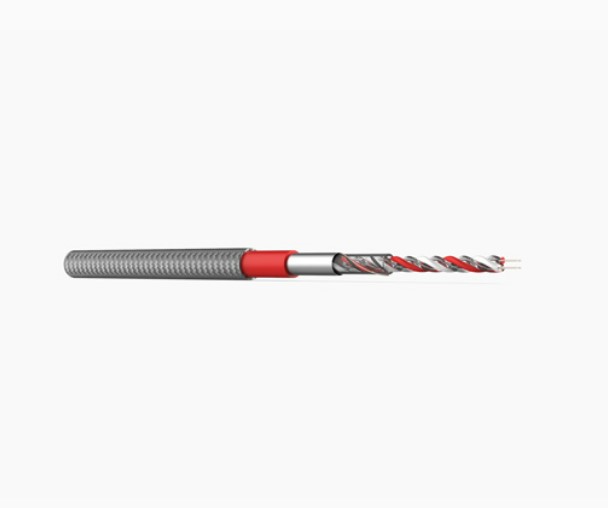

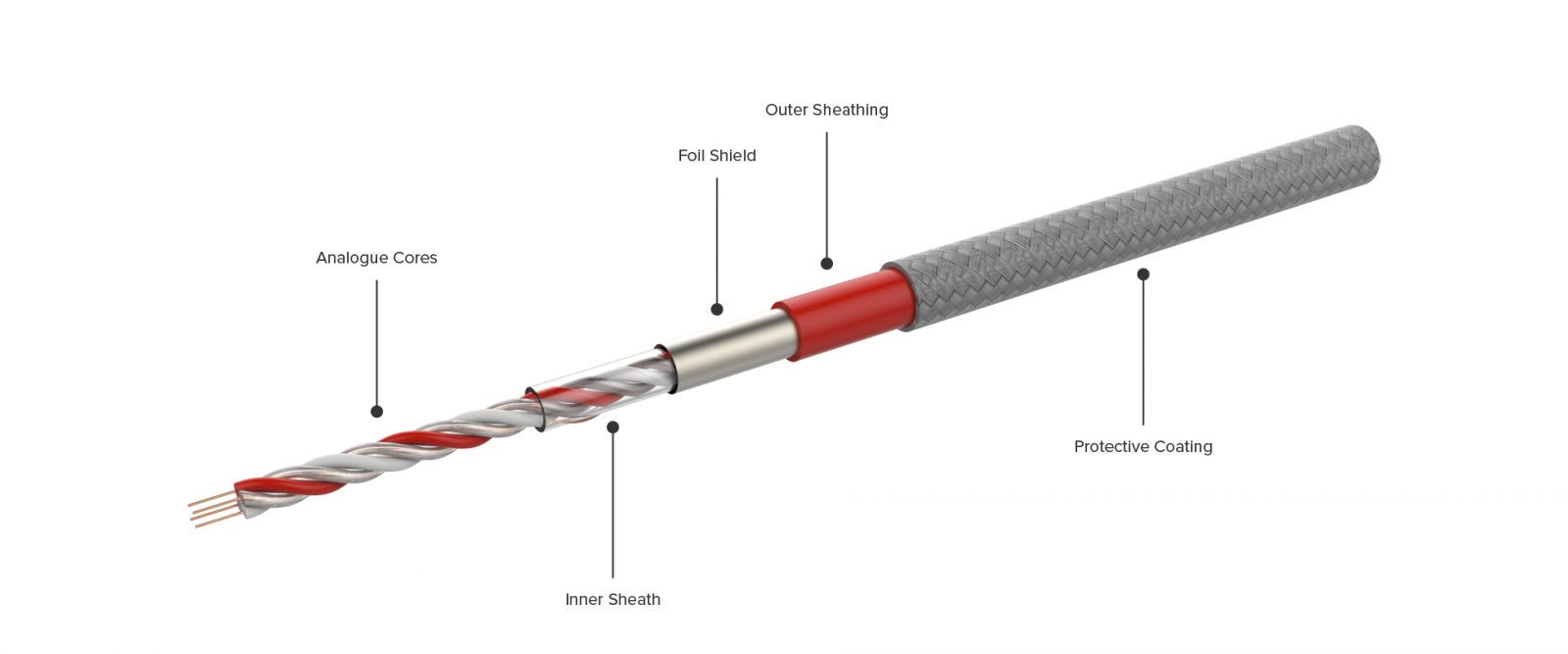

สายตรวจจับความร้อนแบบอนาล็อกสายหุ้มสแตนเลส FyreLine Analogue Stainless Steel LHD Cable
| Outer Jacket | Stainless Steel Braided |
| Overall Diameter | 4.57mm ± 0.075mm (0.180” ± 0.003”) |
| Humidity | 0% to 99% RH |
| RFI Shielding | Twisted and foil shielding to reduce inductance and RF susceptibility |
| Cores |
Calibration Resistance: White Sensor Core: Red Conductor & Specially Doped Polymer Core: Clear Conductor & Specially Doped Polymer Core: Clear |
| Maximum Continuous Length | 500m (1640ft) |
| Minimum Continuous Length | 30.5m (100ft) |
| Operating Temperature Range | -40ºC to 125ºC |
| Continuous Ambient Temperature Range | -40ºC to 90ºC |
