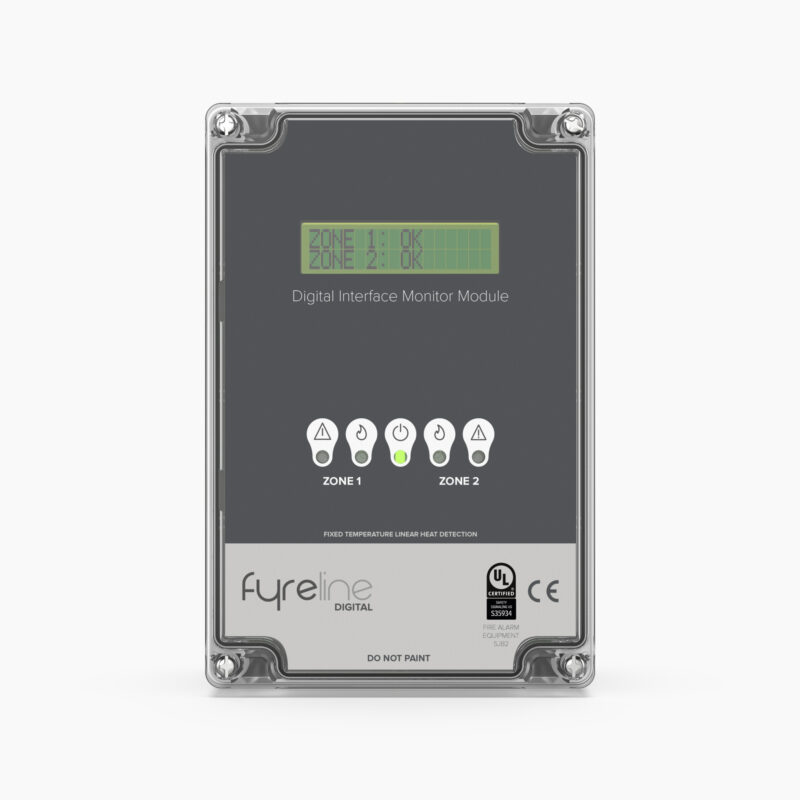

FyreLine Digital Controller เครื่องควบคุุมและตรวจจับความร้อนแบบดิจิตอล
| Dimensions (W x H x D) | 120mm x 180mm x 60.5mm (4.72” x 7.08” x 2.38”) |
| IP Rating | NEMA 4, 4X (IP65) |
| Finish | Light grey with clear lid |
| Display | 2 lines, 16 character back-lit display showing zone status |
| Approvals | UL 864 10th Edition |
| Power Requirements | All circuits power limited if powered from a power limited supply |
| Operating Voltage |
12Vdc 36Vdc |
| Normal Operation (Standby) |
<12mA <4mA |
| Alarm |
<40mA <15mA |
| Operating Temperature Range | -20ºC to +50ºC (-4ºF to +122ºF) |
| Supervised Circuits | Power, Input Zone 1 & Input Zone 2 |
| Inputs | Up to two zones of Fyreline Digital LHD Cable 3000m |
| Max Zone Length | 3000m (10,000ft) |
| Min Zone Length | 1m (3,2ft) |
| End of Line Resistor | 1kohm (included) |
| Short Circuit Current | 0.5mA |
| Max Voltage | 5V |
| Ground Fault Impedance | 0 ohms |
| Communications | Two wire RS-485 Modbus RTU (field wiring limited to same room to comply with UL listing) |
| Sounder | 2.4kHz 92Db @ 10cm Buzzer |
| Alarm |
2x Form C volt-free relay contacts (resistive, common) Max V: 30Vac or 42.4Vdc Max Current: 2A Max Switching Power: 60W, 62.5VA |
| Fault |
2x Optoisolated photo-transistor output (resistive, common) Max V: 35Vdc Max Current: 80mA Max Power Dissipation: 150mW |
