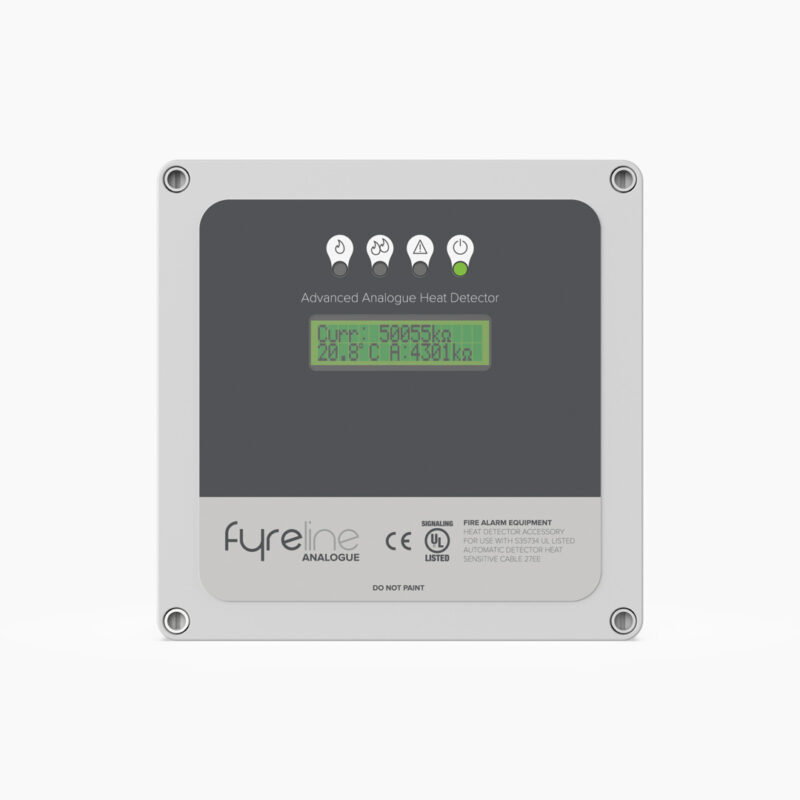

FyreLine Analogue Controller ระบบตรวจจับความร้อนแบบเส้นตรงอนาล็อก
| Dimensions (W x H x D) | 182mm x 180mm x 90mm (7 1/8” x 7 1/8” x 3 1/2”) |
| Enclosure Rating | IP66 (IK08) polycarbonate with removable cover |
| Finish | Light grey |
| Operating Temperature Range | 0ºC – 50ºC |
| Supply Voltage | 20 – 28Vdc |
| Humidity | 0% to 90% RH |
| Current Consumption, Normal & Fault | <70mA |
| Current Consumption, Pre-alarm OR Alarm | <80mA |
| Current Consumption, Alarm (& Pre-alarm) | <100mA |
| Current Consumption, Fault | <70mA |
| Visual Indicators |
ALARM: Red PRE-ALARM: Red FAULT: Orange POWER: Green |
| Relay Outputs | ALARM, PRE-ALARM (all Form C) 2A @ 30Vdc load rating – resistive 0.25A @ 250Vac load rating – resistive |
| Fault Output | Opto-isolated Phototransistor Output Max 50V @ 20mA |
| Remote Reset | Isolated input for resetting module remotely (20-28Vdc pulse for at least 5s) |
| Alarm/Pre-alarm Temperature Range | 54ºC to 100ºC (129ºF to 212ºF) |
